Technical Characteristics

PLC human-machine interface, touch operation. Fault alarm self diagnosis, clear at a glance.

The plasticizing system adopts a hard tooth reducer with variable frequency speed regulation, equipped with alloy mixing screws, which are efficient and low-energy, and the plasticizing is uniform.

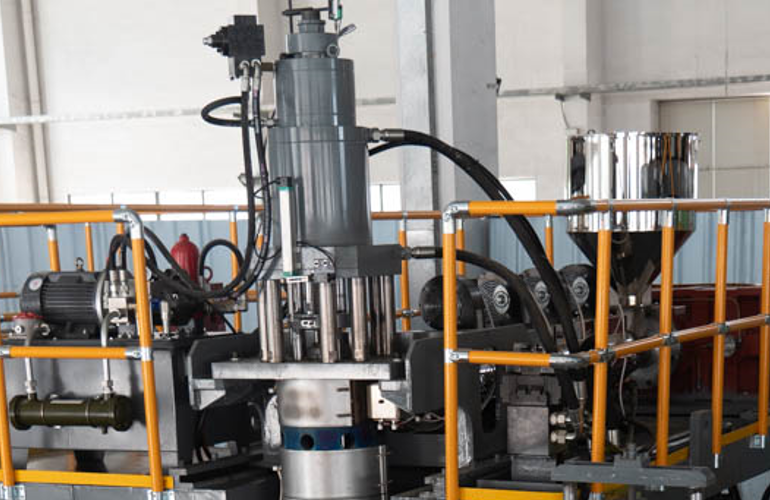

The storage type mold head and the flow channel are made of high-quality nitrided alloy steel, indicating mirror treatment and fast material and color change.

The opening and closing mold adopts double linear guide rails, with a central locking mold that is evenly stressed. The product cut is flat, and the joint line is more beautiful.

The hydraulic system is driven by servo motors and equipped with imported hydraulic components, with precise and stable movements, saving 20% -40% energy compared to conventional models. At the same time, it reduces oil temperature and delays the service life of hydraulic and sealing components.

Parameters

Features & Advantages

• ○Reasonable structure design and solid frame manufacturing to insure running stability.
• ○The storage type mold head and the flow channel are made of high-quality nitrided alloy steel, indicating mirror treatment and fast material and color change.
• ○PLC human-machine interface, touch operation. Fault alarm self diagnosis, clear at a glance.
• ○The opening and closing mold adopts double linear guide rails, with a central locking mold that is evenly stressed. The product cut is flat, and the joint line is more beautiful.
• ○The hydraulic system is driven by servo motors and equipped with imported hydraulic components, with precise and stable movements, saving 20% -40% energy compared to conventional models. At the same time, it reduces oil temperature and delays the service life of hydraulic and sealing components.
• ○The plasticizing system adopts a hard tooth reducer with variable frequency speed regulation, equipped with alloy mixing screws, which are efficient and low-energy, and the plasticizing is uniform.

• ○Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing nd leakage testing, product conveying & packing.

Product Application

• ☆Daily chemical products: shampoo bottles, conditioner bottles, toilet cleaner bottles, facial milk bottles, shower milk bottles, moisturizer bottles, and cleansing bottles
• ☆Food and beverage categories: yogurt bottles, lactobacillus beverage bottles, milk bottles, plastic soy sauce bottles, plastic oil kettles
• ☆Daily necessities: plastic spray cans, plastic chairs, and plastic tabletop versions
• ☆Industrial products: plastic chemical buckets, plastic machine oil buckets, lubricating oil buckets, oil kettles, coolant buckets, stacking buckets
• ☆Transportation facilities: plastic barriers, plastic cones
• ☆Agricultural products: pesticide buckets, pesticide bottles
• ☆Others: float, large toys, toolbox, ocean ball, plastic tray, water storage tank, car fuel tank, medical bed board, etc

Daily Chemical Washing And Packaging

FAQ

1.What can you buy from us?

Extrusion Blow Molding Machine,Injection Molding Machine,Injection Blow Molding Machine,PET Blow Molding Machine,Bottle Blowing machine and more.

2. Are Your Price Is the Lowest In This Field? If Not, Why we Buy From You?

The mutual development of you and us is based on products' quality price rate and working efficiency. We don't supply the lowest price machines, but we provide the highest quality price rated machines.

3. Why should you buy from us not from other suppliers?

Experience efficiency and excellence with our comprehensive plastic blow molding machine production services. We are your ultimate partner, providing end-to-end solutions for all your bottle manufacturing requirements.

4. What services can we provide?

Language :English,Chinese,Russia,Spanish

Guarantee of the machine : one year under the normal operation.

Kaisu offer the customer the technology for free for all life time.
